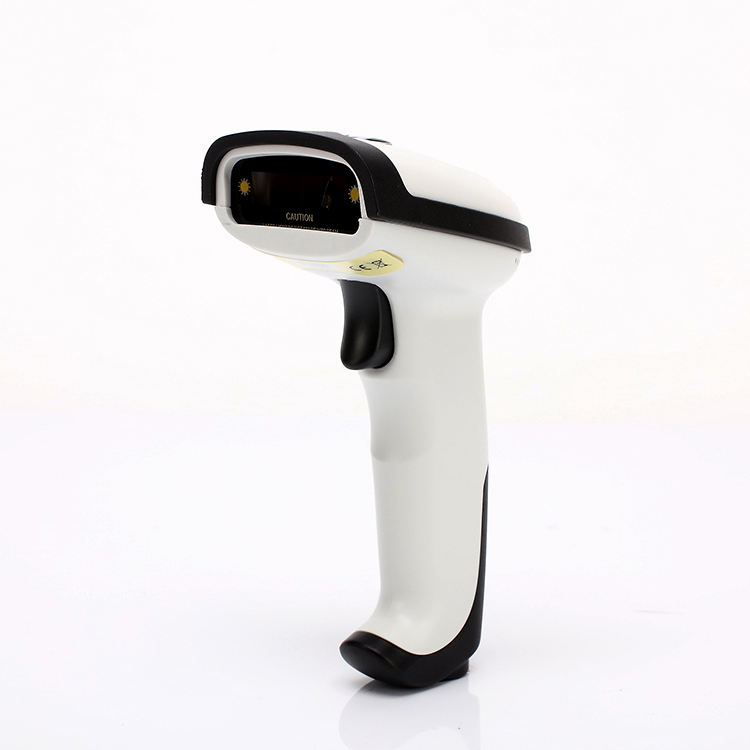

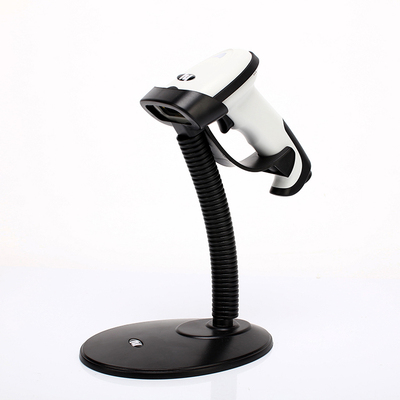

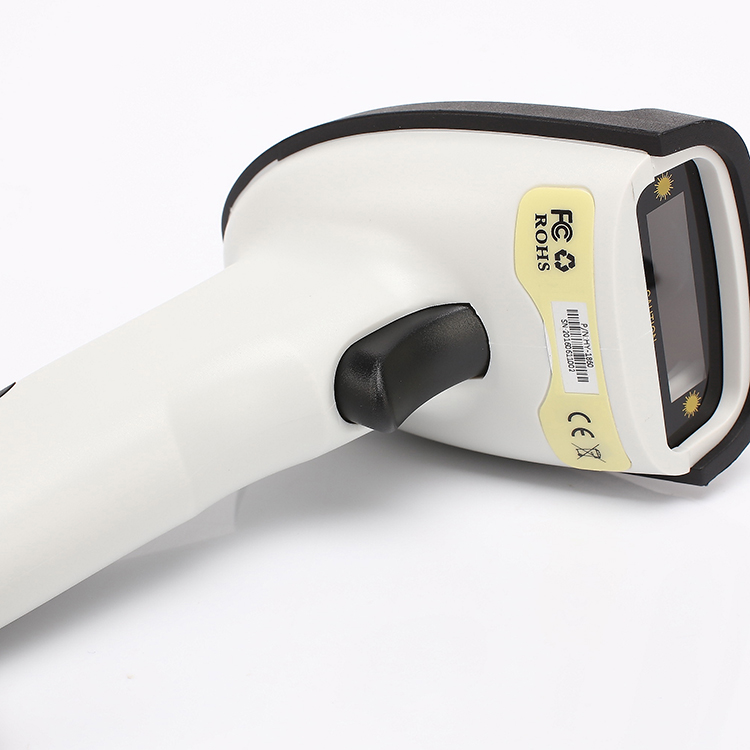

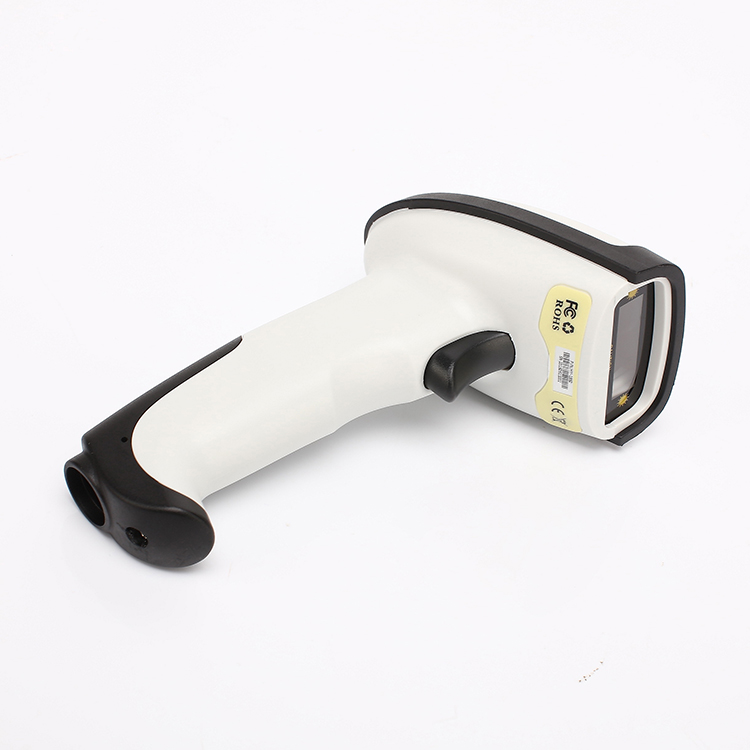

Single line HY-1860 laser bar code reader technical specification:
Product characteristics:
ØSupport output editor: independent patent decoding software, can support a variety of special output format editing and customization, such as adding the identity of characters, hiding the output number, display the bar code system, etc.;
ØDecoding performance excellence: the silver plated optical technology with 32 bit main control chip can be interpreted smoothly reflective, wrinkled, fuzzy, color barcode (red bar don't read because the laser is red), light environment can also be decoded correctly.
Product parameters:
nature can ginseng number | Bar code reading speed | 200 times per second |
Minimum contrast ratio | 35% reflection difference |
Reading angle range | Left and right deflection angle 72 degrees, up and down deflection angle 82 |
Decoding system | EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，code bar，industrial 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI，China Post Code…… |
Type of light source | Red laser with a wavelength of 650nm±8nm |
Interface type | USB2.0、PS/2、RS-232 |
Prompt | Buzzer sound hint and red and blue color lights tips: red tips on electricity, the green light to decode the success. |
Environmental adaptability parameters | Anti fall | Can withstand 1.8 meters free fall drop |
Operating temperature range | 0-50℃ |
Storage temperature range | -40-60℃ |
Working humidity range | 5%-92%non-condensing |
Preserve humidity range | 5%-92%non-condensing |
Ambient light intensity | 450candlelight |
Physical parameter | Net weight of the machine | 150g |
Weight of packing and accessories | 303g |
Host size (length * width * height * mm) | 180*69*92mm |
Package size (length * width * height * mm) | 185*11*85mm |
Electrical parameters | working voltage | 5V |
Operating current | 65mA |
Quiescent current | 30mA |
electromagnetic compatibility | CE & FCC DOC compliance |
HYDECODR V1.2
