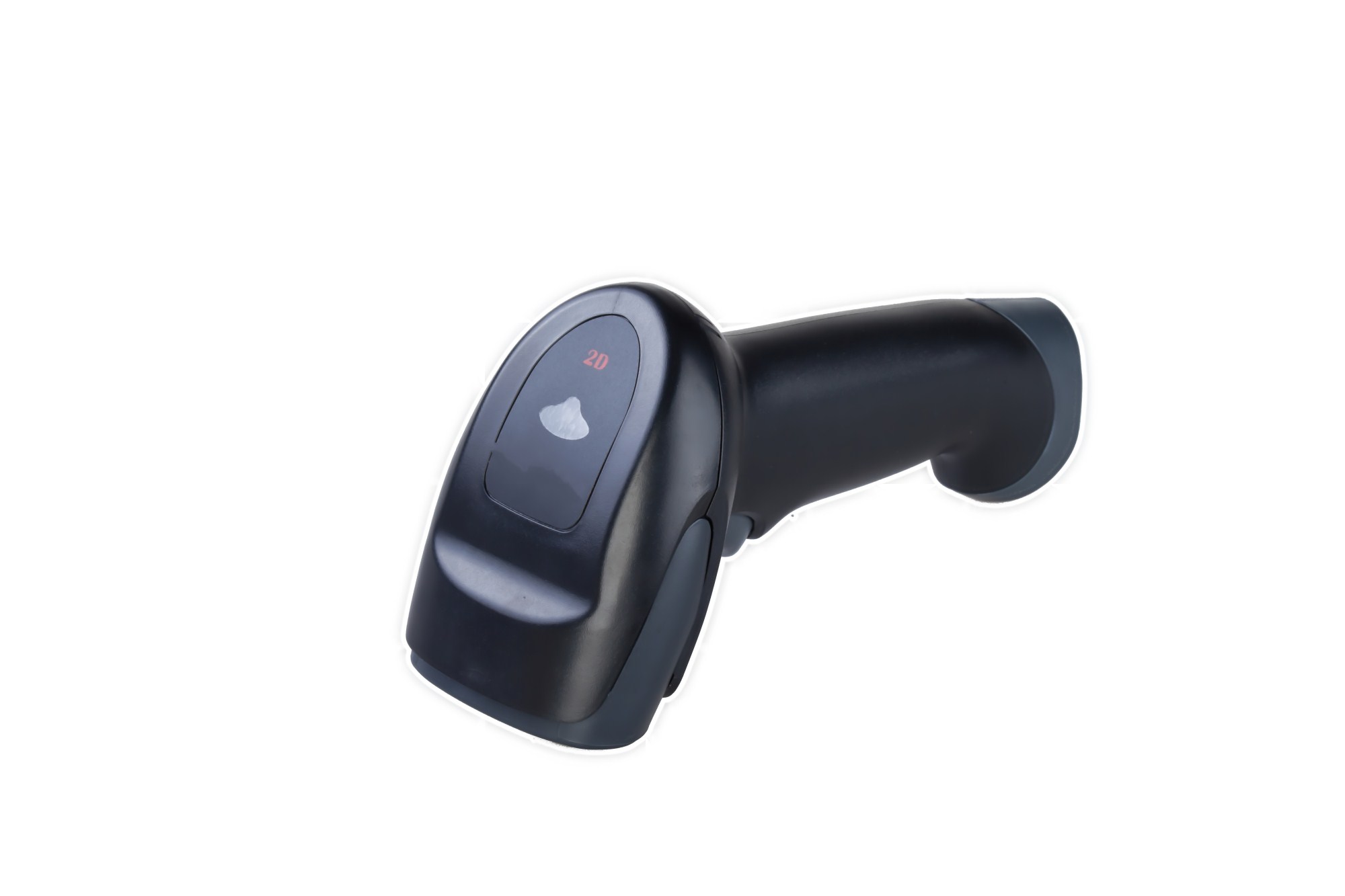

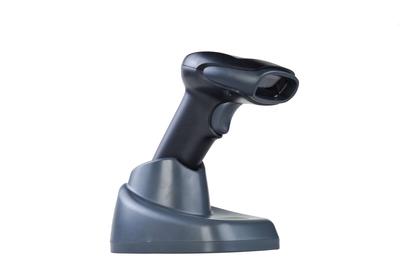

HY-6000
Characteristic
Wireless connection: the latest 433 wireless technology can achieve the scanning gun and the base station 100 meters away from the free movement of the. Durable durable lithium battery: each full charge can support nearly 20 thousand times to ensure the normal operation of scanning, the longest time.
Storage function: can store 1 thousand (1024 characters / bar) bar code information. High quality two-dimensional image scanning gun unique decoding technology: reference to the international top-level decoding technology, can accurately and quickly carry out a variety of one-dimensional, two-dimensional code decoding. Reliable data acquisition function: support all standard two-dimensional code system, computer, mobile phone, tablet and other support screen two-dimensional code scanning to protect the future investment: to provide two-dimensional code scanning function at an affordable price, one set of the equipment can meet the company's current and future needs of barcode scanning.
HY-6000-2D (G) technical parameters
Physical parameter
Scanning type image
Safety performance in line with national level two laser safety standards
Size length * width * height 155mm*65mm*95mm
Length * width * height * width * 200mm*130mm*105mm
Shell material ABS
Product weight 320G
Packaging weight 540g
LED red, green color
performance parameter
Operating current 340mA
DC power supply 5.2VDC@1A; Class2
Quiescent current 30mA
Battery Specification 3.7/2000mA
Charging time 6-8 hours
Work power 400mA@5V-; 2W typical value
Standby power 0.45W, 90mA@5V- typical value
Support bar code type standard one-dimensional, two-dimensional bar code (Data, Matrix, QR, MaxiCode, Aztec Hanxin PDF417)
Radio frequency 433MHZ
Communication distance 200M (Kong Kuang) with storage
Scan times 15000 times
System interface RS232, USB
Environmental parameter
The operating temperature is 0 DEG C - 40
The storage temperature of-40 DEG C - 60
Operating humidity 5%-95% relative humidity, non condensed state
ESD protection + 15kVDC air discharge, + 8kVDC direct / indirect discharge
Drop test 100 times /1M
Light intensity 0-100.000LUX
Motion tolerance 100 mm / s 13milUPC
IP level IP54
LED security authentication IEC6247
IEC60950 CB
Integrated authentication GOST-R (Russia), CE
Electromagnetic interference in compliance with PAR1, en50081 specifications
EMC electromagnetic compatibility EN55024, class B EN55022
Dust proof seal in order to resist the intrusion of airborne dust particles
Classical performance
Barcode depth density
3 Code39 33-95mm mil (1.3-3.7in.)
10 UPC 32-255mm mil (1.3-10.0in.)
20 Code39 35-355mm mil (1.4-14.0in.)
6.6 PDF417 30-95mm mil (1.2-3.7in.)
6.7 Data mil Matrix 30-100mm (1.2-3.9in.)
15 Data mil Matrix 21-162mm (0.8-6.4in.)
20 QR 23-300mm mil (0.9-7.9in.)
This data may be due to the quality of the bar code and environmental factors
